Graphene FET Toy Physics Model

This graphene FET toy physics model is primarily based on the graphene physics described in the paper Electronic transport in two dimensional graphene by S. D. Sarma et. al. and from materials properties data found in a number of sources (see the Description tab for the details). I’d appreciate any comments on errors, problems, inaccuracies, or how to make this model better.

The IV Model tab allows you to selected the gate dielectric, dielectric thickness, mobility, gate voltage, phonon energy of the dielectric, drain-source voltage, drain-source length and width, and the resulting IV curve is plotted for these parameters.

The Performance Table tab shows a summary of the graphene FET performance based on the selected values on the IV Model tab.

The Materials Properties Tab shows the dielectric constant, breakdown voltage, and optical phonon energy for each gate dielectric that can be selected in the IV Model tab.

Raspberry Pi touch screen display lights up

Installing the kernel and drivers to get the Adafruit 2.8 inch touch screen operation was more involved than I expected, but it is working. It just need some tweaking to set it up so that the GUI can be used more easily. The RPi seems to be set up for a 1080×760 monitor but the touch screen is only 320 by 240. At least one configuration file will likely need updating to make the background and applications windows fit better.

I used the Occidentalis v0.2 kernel build as described in the Adafruit instructions for the PiTFT touch screen. The instruction have you build a new kernel so it takes a while to get it running. After building the new kernel, the Wolfram language package needs to be installed as the Wolfram language only comes pre-installed in the Rasbian distribution in the NOOBS loader. This went smoothly but I’ve had one of my CDFs crash Mathematic so some troubleshooting is still required.

The RPi distribution via NOOBS seemed to be faster and more responsive than this version when it was first installed. The Ethernet adapter was not set up to run automatically, and the wireless interface was not configured to connect to hidden station IDs. Changes to the Interfaces configuration file enabled the Ethernet port. Later updates to this file, enabled a wireless connection too. After upgrading the packages, it seems to be much more responsive.  The photos below show the display just after boot into x-windows and with the Fermi-Distribution function notebook running in Mathematica.

Raspberry Pi with an Adafruit PiTFT 2.8 in touch screen running in x-windows mode
Raspberry Pi with an Adafruit PiTFT 2.8 in touch screen running in x-windows mode.

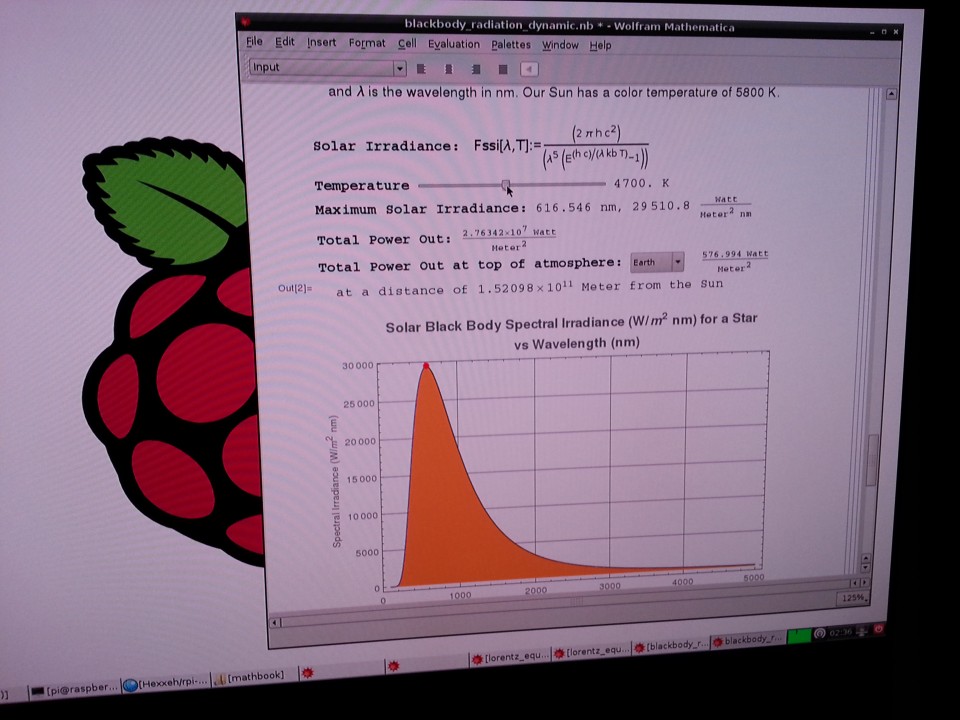

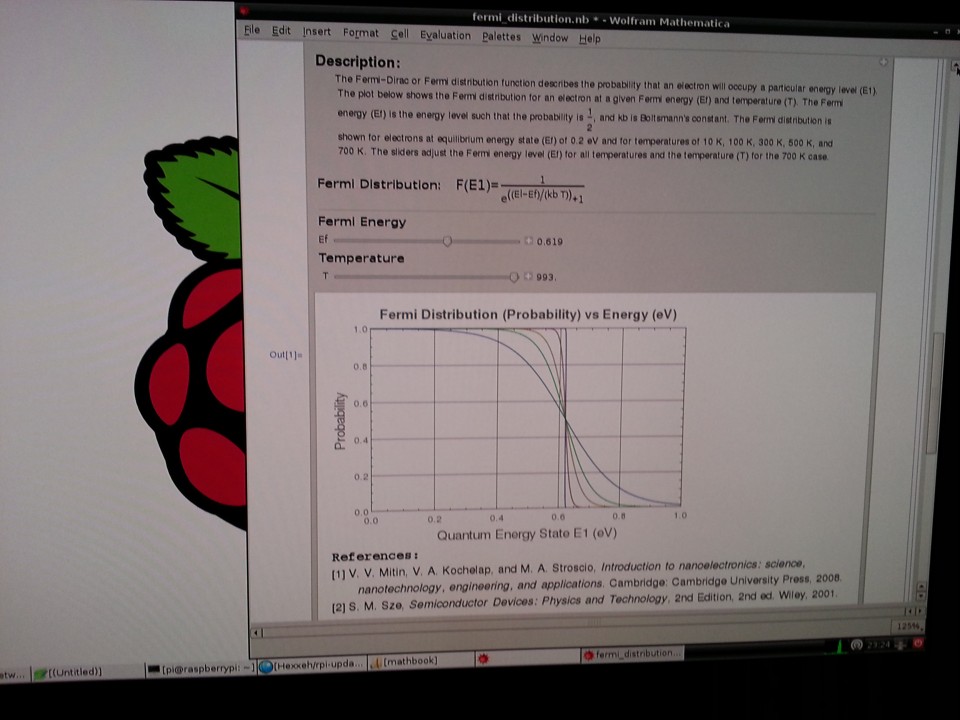

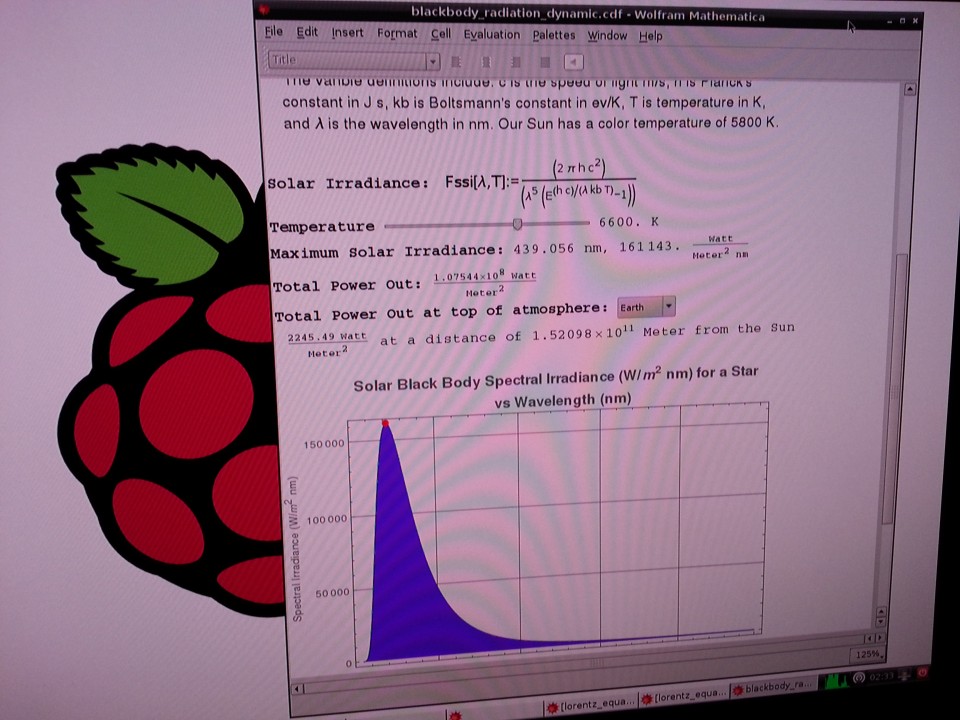

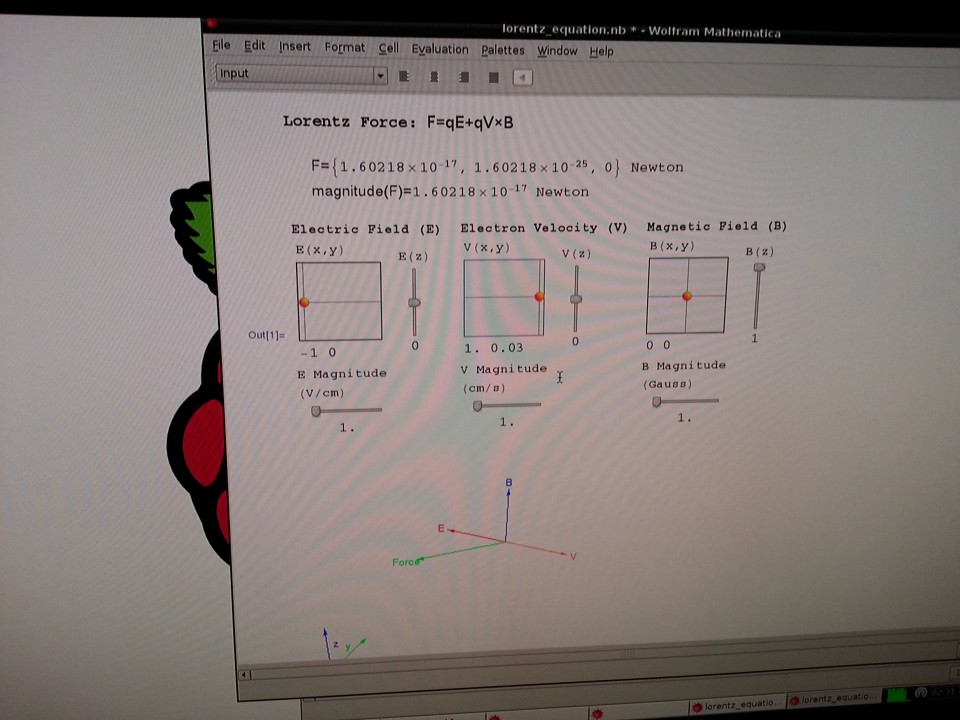

Raspberry Pi with an Adafruit PiTFT 2.8 in touch screen running in x-windows mode showing a Mathematica notebook running
Raspberry Pi with an Adafruit PiTFT 2.8 in touch screen running in x-windows mode showing a Mathematica notebook running.

It’s easier for me to use and remember operations in a GUI like Windows XP rather then a command string operation system like Linux so I keep a cheat sheet of command. These commands were used repeatedly for this activity and are listed below.

Updating the Raspbian

sudo apt-get update
sudo apt-get upgrade

Firmware updates
Updating the firmware on the RPi requires the rpi-update tool. The tool is on github along with the direction for installing it.

sudo apt-get install git-core
sudo wget https://raw.github.com/Hexxeh/rpi-update/master/rpi-update -O /usr/bin/rpi-update && sudo chmod +x /usr/bin/rpi-update
sudo rpi-update

The rpi-update will rebuild a new kernel. It might take a little while. When it completes, then reboot the RPi.

Shutdown and reboot
From an x-windows session or command line, use

sudo shutdown –h now (to shutdown and halt. Restart by cycling the power to the RPi)
 or
sudo shutdown –r now (to reboot the RPi).

Device driver location
If the build worked correctly, then /dev should contain two new SPI devices

  • spidev0.0
  • spidev0.1

Brian’s life blog has another good description on how to install the SPI drivers and use them.

Wireless adapter driver installation
See the eLinux.org wiki about USB wireless adapters and installing the drivers.

lsusb shows the devices connected to the USB ports
lsmod shows the modules installed

Edit /etc/network/interfaces using the nano editor and add the following if not already present for access to a hidden network (see How to setup a Raspberry Pi with a hidden network using a Edimax EW-7811Un).

auto lo
 iface lo inet loopback
iface eth0 inet dhcp
auto wlan0
 allow-hotplug wlan0
 iface wlan0 inet dhcp
 wpa-scan-ssid 1
 wpa-ap-scan 1
 wpa-key-mgmt WPA-PSK
 wpa-proto RSN WPA
 wpa-pairwise CCMP TKIP
 wpa-group CCMP TKIP
 wpa-ssid “Your Wifi SSID”
 wpa-psk "Your PSK Value&gt"
iface default inet dhcp

Then output and exit and restart the configuration

sudo /etc/init.d/networking restart

Remote access
First, generate new RSA key (see Remote Access from eLinux.org).

sudo rm /etc/ssh/ssh_host_* && sudo dpkg-reconfigure openssh-server

Then from windows, use Putty or from Linux use ssh

ssh ip-address –l username
 or
ssh –X ip-address –l username

to open using the x-windows server in Linux or a x-winders server in Windows. The x-window server must be installed on Windows first before starting an x-session.

Installing Mathematica

 sudo apt-get update && sudo apt-get install wolfram-engine

Raspberry Pi Mathematica Notebook and CDF test

I wondered if the five CDFs and their associated notebooks posted to date on this blog would run unmodified on Mathematica running on the Raspberry Pi. The answer is mostly yes. All but one ran. The Yahoo! Financial Code Generator CDF ran but the notebook did not. This notebook crashed Mathematica on the Raspberry Pi. To be fair, however, the Yahoo! Financial Code Generator needs some work. It runs continuously and should only update once a code button is selected. All version were very slow as well. This means that careful and efficient code is require for responsive operation on the Raspberry Pi.

Fermi Distribution Notebook

Lorentz Equation Notebook

Lorentz Equation CDF

Solar System Animation Notebook

Solar System Animation CDF

Solar Radiance CDF

Solar Radiance Notebook

Yahoo! FInance CDF
